Butterfly Valves

Butterfly valves are a family of quarter-turn rotational motion valves that are used in pipelines to shut-off flow. It is often said that butterfly valves can be used to regulate the flow. However, we do not recommend doing this, as it can damage the valve disk and have a negative effect on the sealing properties. They are used in a wide variety of process media and industries especially in water supply, collection, and distribution, as well as pumping stations, and have a broad range of use cases especially in flow isolation. A couple of their key advantages over other valve families are their simple construction and compactness, resulting in the end products being of lighter weights and lower cost and with smaller installation footprints and faster actuation speeds.

Butterfly valves are a family of quarter-turn rotational motion valves that are used in pipelines to shut-off flow. It is often said that butterfly valves can be used to regulate the flow. However, we do not recommend doing this, as it can damage the valve disk and have a negative effect on the sealing properties. They are used in a wide variety of process media and industries especially in water supply, collection, and distribution, as well as pumping stations, and have a broad range of use cases especially in flow isolation. A couple of their key advantages over other valve families are their simple construction and compactness, resulting in the end products being of lighter weights and lower cost and with smaller installation footprints and faster actuation speeds.

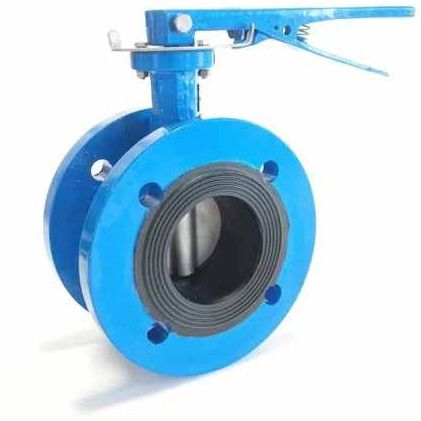

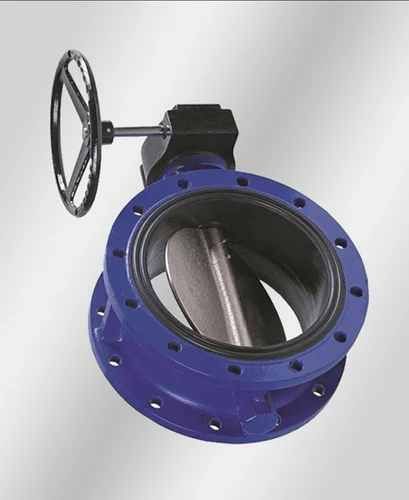

Centric butterfly valves with fixed liner feature an outstanding seating concept. The rubber is injection moulded directly on the valve body forming a permanent bond. Consequently, there is no risk of deformation or dislocation of the liner making the valves suitable under vacuum conditions. The combination of the profiled disc edge and the excellent rubber quality ensures maximum durability of the liner.

FEP ptfe coated Butterfly Control Valve and pfa coated Lug Type Butterfly Valve manufacturer in India

PTFE Butterfly Valve is a type of gate valve that has the gate in a butterfly shape and the interior of the valve is coated with a ptfe polymer. The ptfe coated butterfly valve has a body, a stem, a handle and the butterfly disc inside the body of the valve. The disc is connected to a central axis which connects to the stem and handle above. The shape of the disc looks like a butterfly; hence the naming. The ptfe seal butterfly valve operates by opening and closing the valve as the disc is rotated horizontally inside the body. When the dis is in parallel to the pipeline the valve is open and when the disc is in perpendicular to the axis of flow, the valve is closed.

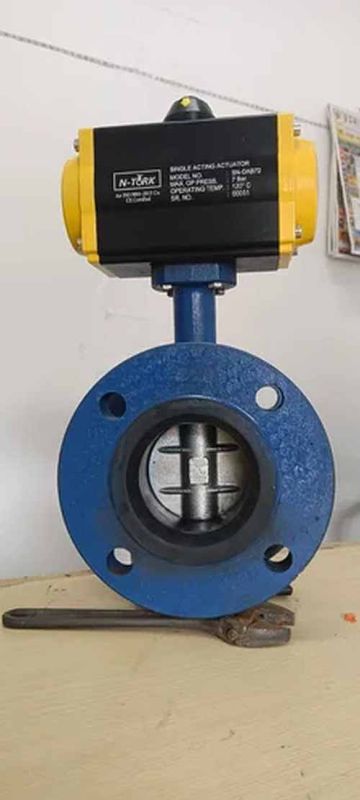

SN ENGINEERS Well Known for their Wafer type Butterfly Valve Manufacturer.

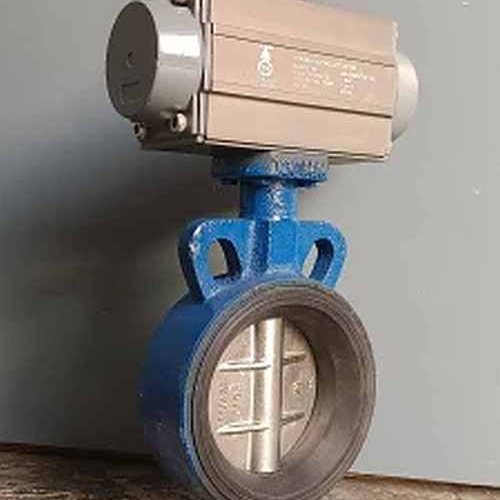

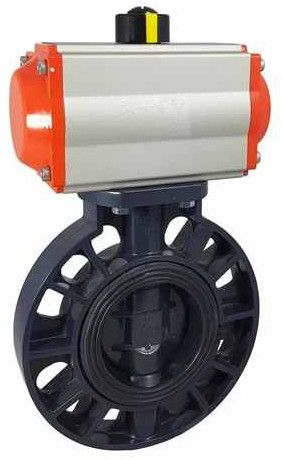

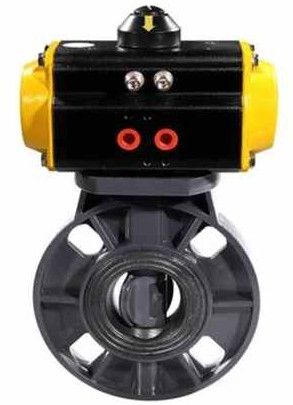

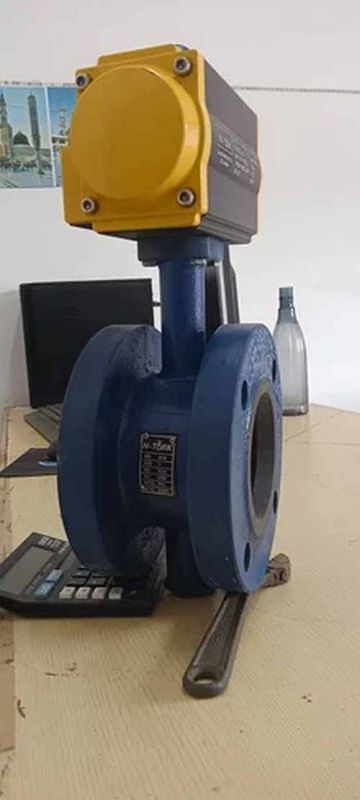

We Serve Pneumatic Actuator Wafer Type Butterfly Valve India.

We have a wide range of Pneumatic Actuator Operated Wafer Type Butterfly Valve with Excellent Features like -20°C to 80°C Temperature and PN 10 / PN 16 Pressure Rating also provide PN 20 as per customer request.

Our Pneumatic Actuator Wafer Type Butterfly Valve also know only Wafer type Butterfly Valve in Valve Market.

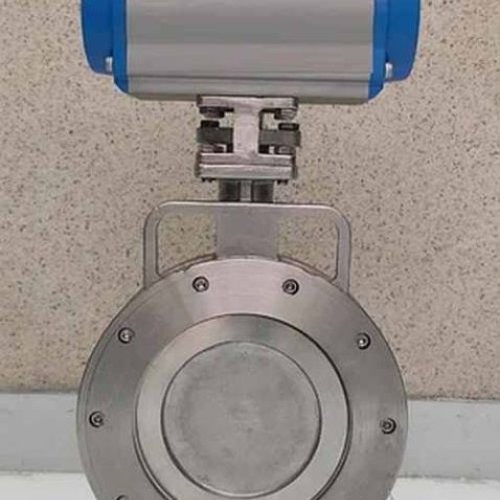

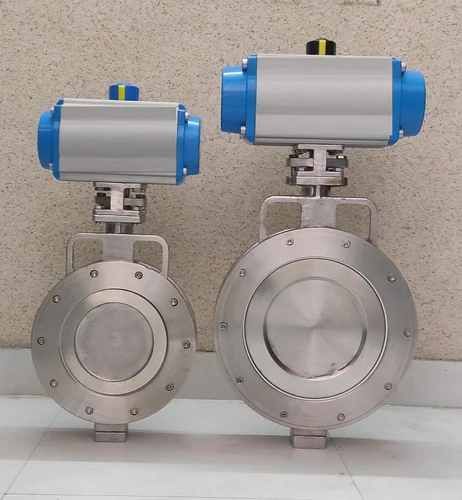

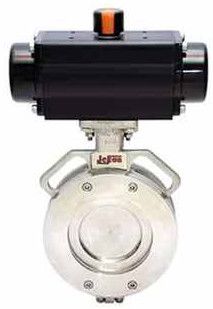

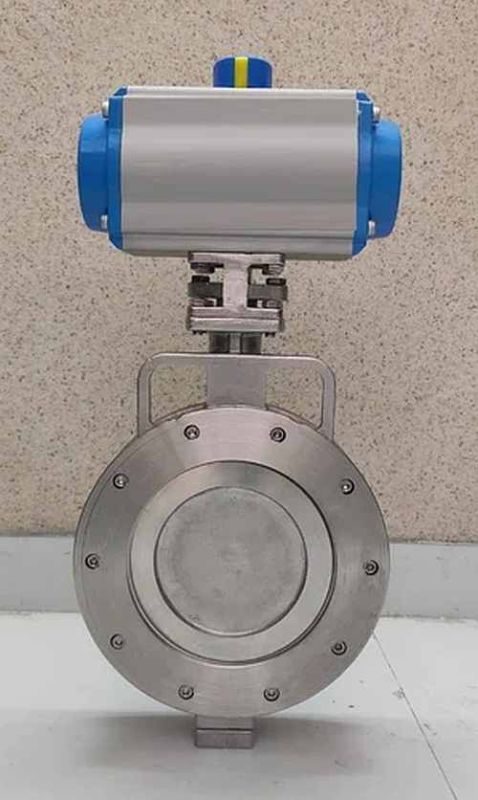

A Pneumatic Double Eccentric Wafer Type Butterfly Valve is a high-performance quarter-turn valve designed for reliable on/off and throttling control. The double eccentric (double offset) disc design minimizes seat friction during operation, resulting in reduced wear, lower operating torque, and extended service life. The valve is actuated by a pneumatic actuator, making it suitable for automated process control in demanding industrial applications.

• Double eccentric (double offset) disc design for longer seat life
• Wafer type body for compact installation between flanges
• Pneumatic actuator for fast and reliable automation
• Low operating torque with bubble-tight shut-off
• Available in double-acting or spring-return actuator configurations
• Suitable for on/off and modulating applications
• Corrosion-resistant construction with various seat and disc materials
• ISO 5211 mounting pad for easy actuator installation
• Long service life with minimal maintenance

• Water & Wastewater
• Chemical Processing
• Oil & Gas
• Power Plants
• HVAC Systems
• Food & Beverage
• Pharmaceutical Industry
• Paper & Pulp
• Marine Applications
• General Industrial Automation

• Lower operating torque than concentric butterfly valves
• Reduced seat wear due to double offset design
• Excellent sealing performance
• Lightweight and compact construction
• Easy installation and maintenance
• Suitable for high-cycle automated operation
• Long operational life

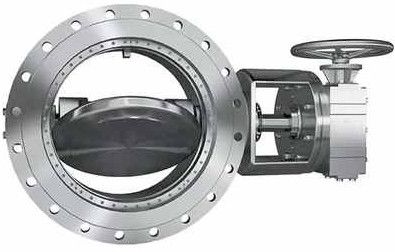

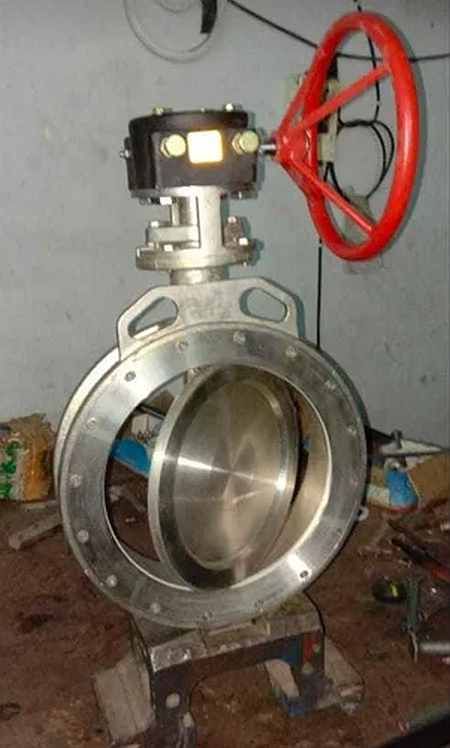

SN ENGINEERS Well Known for their Double Eccentric Off Set Disc Butterfly Manufacturer.

We Serve Wafer Type Butterfly Valve India.

We have a wide range of Wafer Type Butterfly Valve with Excellent Features like -20°C to 80°C Temperature and PN 10 / PN 16 Pressure Rating also provide PN 20 as per customer request.

Our Wafer Type Butterfly Valve also know only Wafer type Butterfly Valve in Valve Market.

Pneumatic rubber lined butterfly valve manufacturer, factory and supplier. Pneumatic rubber lined butterfly valve is composed of wafer, flange or lug end rubber lined butterfly valve and single acting or double acting pneumatic actuator, Pneumatic rubber lined butterfly valve as a component used to cut off and control the flow of pipeline system, Pneumatic rubber lined butterfly valve has been widely used in many fields, such as oil, chemical, metallurgical and hydroelectric fields. In the known butterfly valve technology, its sealing form mostly adopts the sealing structure, and the sealing material is rubber, polytetrafluoroethylene and so on.

Pneumatic rubber lined butterfly valve  Technical Specification

Normal Size Range: 2"-80"

Normal Pressure Rating: PN10~PN16, CLASS150

Material: Cast iron,WCB, CF8,CF8M,CF3,CF3M

Operation: Handwheel, Pneumatic, Electric

Temperature Range: -29°C~150°C
