GST NO. : 27POKPS1396E1Z6
2,000.00 / Piece
| Business Type | Manufacturer, Supplier, Trader |
| Valve Size | 2 Inch |
| Connection Type | Flanges |
| Material | PTFE Lined |
| Click to view more | |
Product Details
Color
Green
Maximum Pressure
16 Bar
Standard
ISO, ANSI, BSP
Automation Grade
Manual
Country of Origin
India

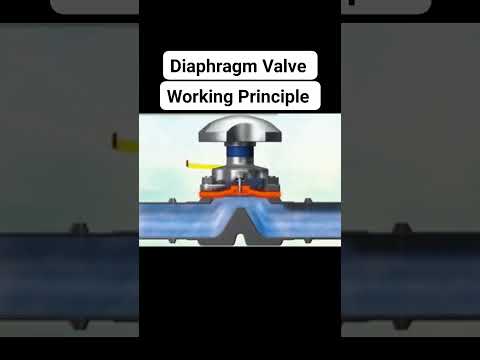

The heart of Diaphragm Valve is Rubber Diaphragm and its rubber lining.

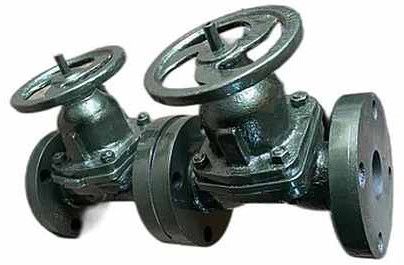

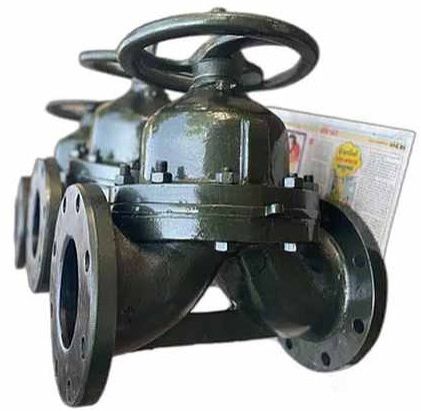

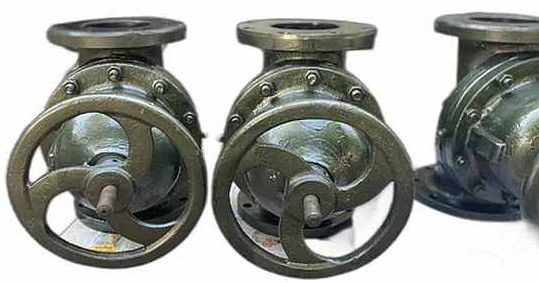

N-TORK RUBBER offer KIPFLO make Unlined and Rubber Lined Diaphragm valves having weir type design as well as straight through type design for various applications.
Valve body: C.I. Gr. 210, CS, and SS 304 – 316
End Connections: Flanged, screwed Butt
Operated: Handwheel or Actuator operated.
Face to face distances: As per BS-5156.
Interchangeability: 100% interchangeable
Diaphragms: Neoprene, Buna-N, EPDM, Butyl, Hypalon
Rubber linings: Ebonite, Neoprene, Butyl and Hypalon.
Size range: For Type-A: 15mm NB to 300mm NB.
Size range: For Type-KB: 25mm NB to 150mm NB
