| Business Type | Manufacturer, Supplier, Trader |
| Material | Stainless Steel |
| Type | Basket Strainer |
| Color | Blue |
| Click to view more | |
Product Details

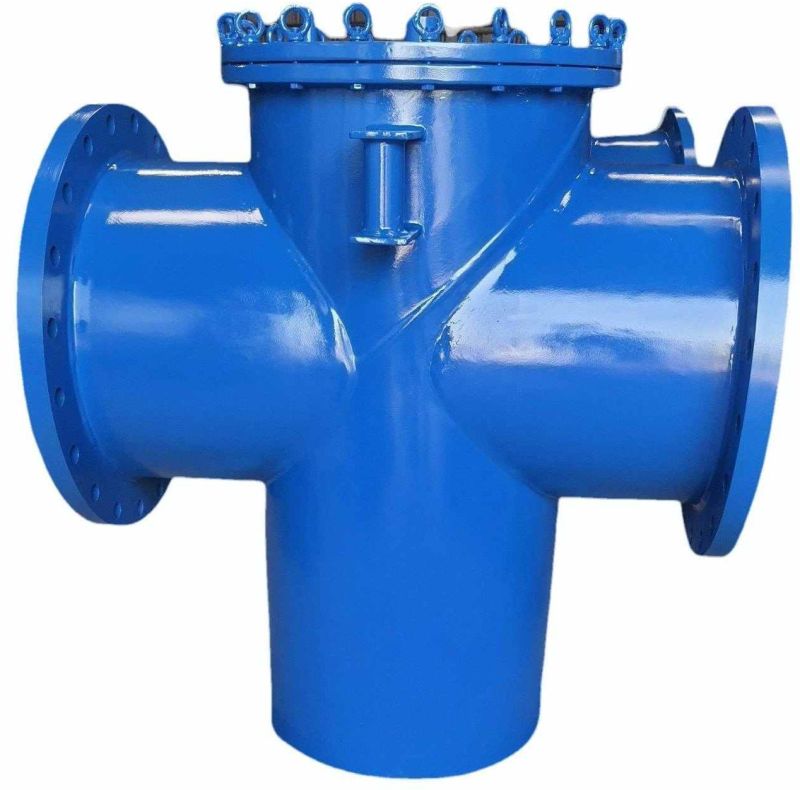

A basket strainer is a type of mechanical filter used in pipelines to remove debris, scale, and other unwanted particles from flowing liquids. It plays a crucial role in protecting downstream equipment like pumps, valves, and traps from damage.
🔧 How It Works
Basket strainers are typically installed in horizontal pipelines. Inside the strainer housing is a removable basket, usually made of stainless steel mesh or perforated metal, which captures debris as fluid flows through. The basket can be taken out for cleaning, making it a reusable and low-maintenance solution.
🛠️ Key Features
Material: Commonly made from stainless steel (SS 304/316), carbon steel, or duplex steel.
Pressure Rating: Up to 600 PSI (ASME Class 150–600).
Temperature Range: -20°F to 750°F.
Filtration Fineness: Mesh sizes range from 0.04″ to 0.25″, customizable based on application.
Connection Types: Flanged, threaded, or welded ends.
🏭 Applications
Basket strainers are widely used in:
Oil & Gas: To filter crude oil and prevent pipeline blockages.
Water Treatment: To remove sediments and contaminants.
Chemical Processing: For filtering aggressive or corrosive fluids.
Pharmaceuticals & Food Processing: For sterile or sanitary filtration
