| Business Type | Manufacturer, Supplier, Trader |
| Material | Cast Iron |
| Pressure | High, Medium |
| Brand Name | HAMMER / KIRLOSKAR |
| Click to view more | |
Product Details

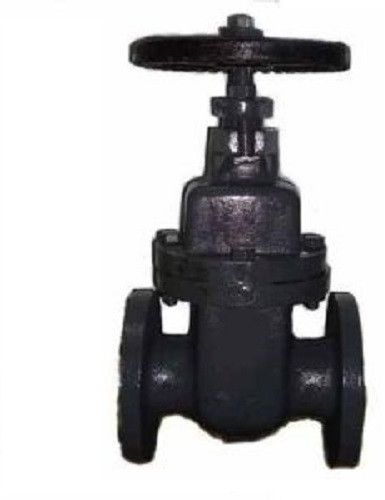

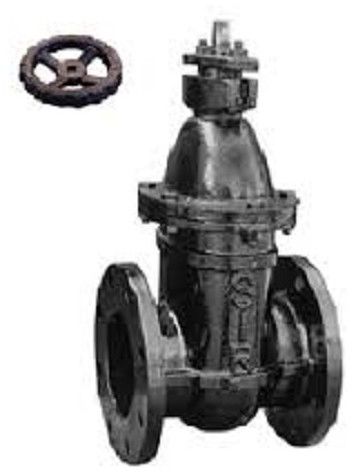

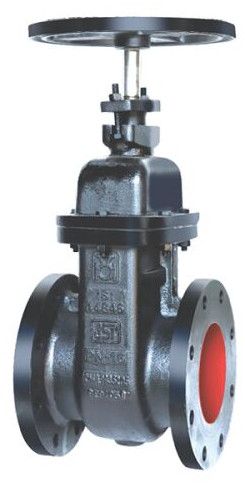

Sluice Valve (Gate Valve) Description:
A Sluice Valve, commonly referred to as a Gate Valve, is an isolation valve used to start or stop the flow of fluid in a pipeline. It operates by raising or lowering a gate (wedge) inside the valve body to control fluid passage. When fully open, the gate is completely drawn up into the bonnet, allowing an unobstructed flow path with minimal pressure drop. When closed, the gate seats tightly against the body to ensure a leak-proof seal.
Key Features:
-
Type: Rising or Non-Rising Stem
-
Body Material: Cast Iron / Ductile Iron / Cast Steel / Stainless Steel
-
Pressure Rating: PN10 / PN16 / Class 150
-
End Connection: Flanged (as per IS 14846 / BS / ANSI standards)
-
Operation: Handwheel / Gearbox / Electric Actuator
-
Size Range: 50 mm to 1200 mm (or as required)
Applications:
-
Water supply and distribution systems
-
Sewage and wastewater treatment plants
-
Firefighting networks
-
Irrigation and industrial pipelines
-
Power plants and process industries
Advantages:
-
Provides full bore flow with minimal pressure loss
-
Reliable shut-off for long service life
-
Suitable for both above-ground and underground installations
-
Easy maintenance and operation
