| Business Type | Manufacturer, Supplier, Trader |
| Valve Size | 1inch, 1/2inch, 1.1/2inch, 1.1/4inch, 2inch, 3/4inch |
| Usage | Water Fitting |
| Packaging Type | Box |
| Click to view more | |
Product Details

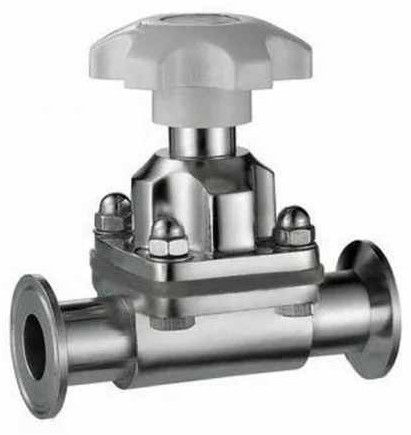

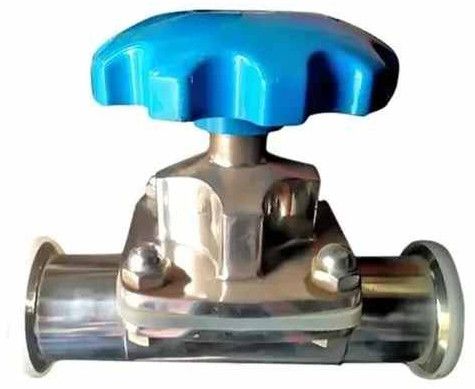

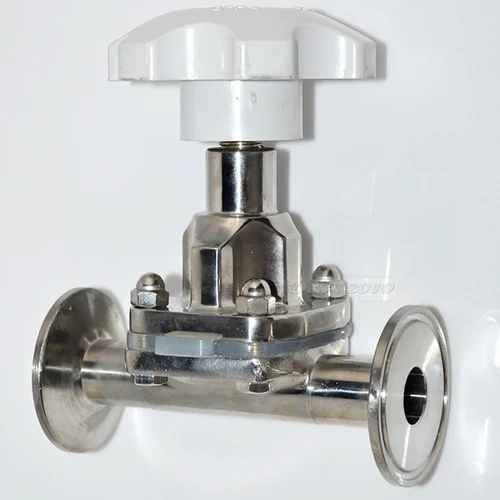

A Pharma Diaphragm Valve is a specialized sanitary valve designed to regulate and isolate flow in high-purity and sterile processing applications. It uses a flexible elastomer diaphragm that is compressed against a weir or straight-through body to control the flow path, ensuring a completely leak-tight seal and eliminating areas where contaminants or bacteria could accumulate. With a smooth, crevice-free internal surface and drainable design, diaphragm valves are ideal for clean-in-place (CIP) and sterilize-in-place (SIP) operations.
Manufactured from SS316L stainless steel or other high-performance alloys with EPDM, PTFE or silicone diaphragms, they are widely used in pharmaceutical, biotech, cosmetic, and food processing systems that require sterile, hygienic, and aseptic operation.
Key Features-
Hygienic design compliant with cGMP, FDA, and ASME-BPE standards
-
Zero contamination risk with crevice-free internal surfaces
-
Self-draining body suitable for CIP / SIP processes
-
Bubble-tight shutoff with high purity elastomer diaphragm
-
Suitable for throttling and on/off control
-
Available in manual and pneumatic actuated options
-
Surface finish up to Ra ≤ 0.4 μm electropolished
-
Pharmaceutical formulation and API manufacturing
-
Biotech fermentation and upstream/downstream processing
-
WFI (Water for Injection) & Purified Water distribution systems
-
Clean steam, gases & high-purity chemicals
-
Cosmetics and food processing industries
